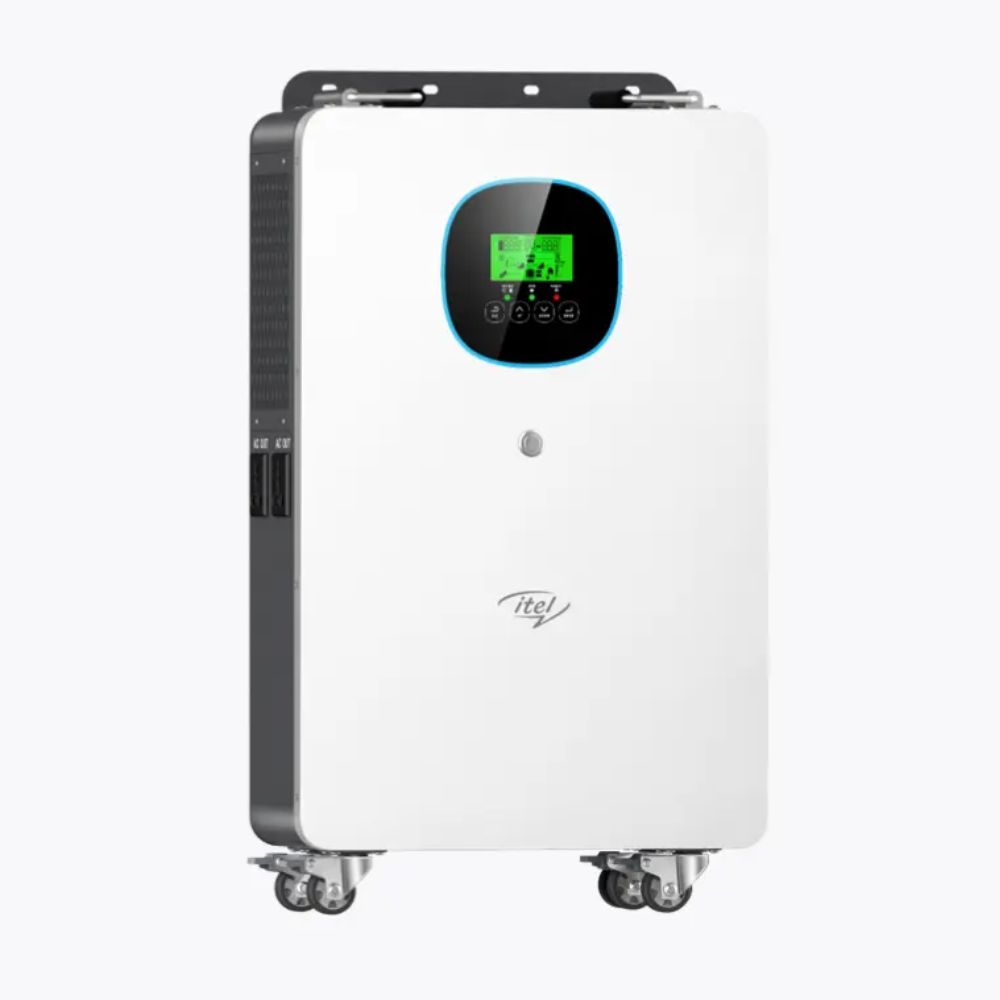

| Model | IESS-6K48 | IESS-K1012 | IESS-3K60 |
|---|---|---|---|
| EFFICIENCY | |||
| MPPT Tracking Efficiency | 98% | 98% | 94% |
| Max. Conversion Efficiency | 97% | ||
| PV INPUT | |||
| Max. PV Input Power* | 6500W | 600W | 6200W |
| Nominal DC Voltage / Max. DC Voltage | 360VDC/500VDC | 20VDC/30VDC | 90VDC/120VDC |
| Start-up Voltage/Initial Feeding Voltage | 60VDC/90VDC | 20VDC/30VDC | 90VDC/120VDC |
| MPPT Voltage Range | 60VDC-450VDC | 20VDC-150VDC | 60VDC-450VDC |
| Number of MPPT Trackers/Input Current | 1/23A | 1/60A | 1/18A |
| Number of MPPT Trackers | 1 | 1 | 1 |
| AC INPUT | |||
| AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | ||
| Input Voltage Range | 90-280VAC or 170-280VAC | ||
| Maximum AC Input Current | 40A | 10A | 30A |
| Nominal operating frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| Surge power | 12400VA/3ms | 2000VA/2ms | 7200VA/3ms |
| AC Output | |||
| Nominal AC Output Power | 6200W | 1000W | 3600W |
| Nominal AC Output Voltage | 220/230/240VAC | 230VAC±5% | 220/230/240VAC |
| Output Voltage Range | 195.5-253VAC | ||
| Nominal AC Output Current | 27A | 4.3A | 15.7A |
| Max. AC Current | 36.4A | 40A | 60A |
| Nominal AC Frequency | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
| Switch Time | 10ms (PC) 20ms (Home Appliances) | ||
| TWO LOAD OUT POWER | |||
| Max. Main load | 6200W | ||
| Max. Second load (Battery mode) | 2067W | ||
| Main Load Cut Off Voltage | 52VDC | ||
| Main load Return Voltage | 54VDC | ||
| Battery | |||
| Battery Type | Lead-acid/Li-ion/User Defined | ||
| Rated Battery Voltage | 51.2VDC | 12VDC | 25.6VDC |
| Nominal Capacity (Wh) | 5.12KWh | 1.28KWh | 5.12KWh |
| Nominal Capacity | 100Ah | 100Ah | 200Ah |
| Battery Voltage Range | 48V-60V | 10V-16V | 20V-33V |
| Max. MPPT Charging Current | 120A | 60A | 100A |
| Max. Mains/Generator Charging Current | 100A | 40A | 100A |
| Max. Battery Current | 12A | ||
| General | |||
| Dimensions DWH (mm) Hybrid | 460540190 | 328561143 | 455792233 |
| Dimensions DWH (mm) Battery | 500540200 | ||
| Net Weight (Kg) Hybrid | 27.8 | 16 Net Weight (Kg) | 42 Net Weight (Kg) |
| Net Weight (Kg) Battery | 54 | ||
| Operating Temperature Range | -10~+50°C | -10~+50°C | -10~+50°C |
| Noise | <60dB | <60dB | <60dB |
| Communication with BMS | RS485/RS232 | ||
| Cool Method | Internal Fan | ||
| Authentication Level | IEC-UN 38.3 – MSDS – DGM |
