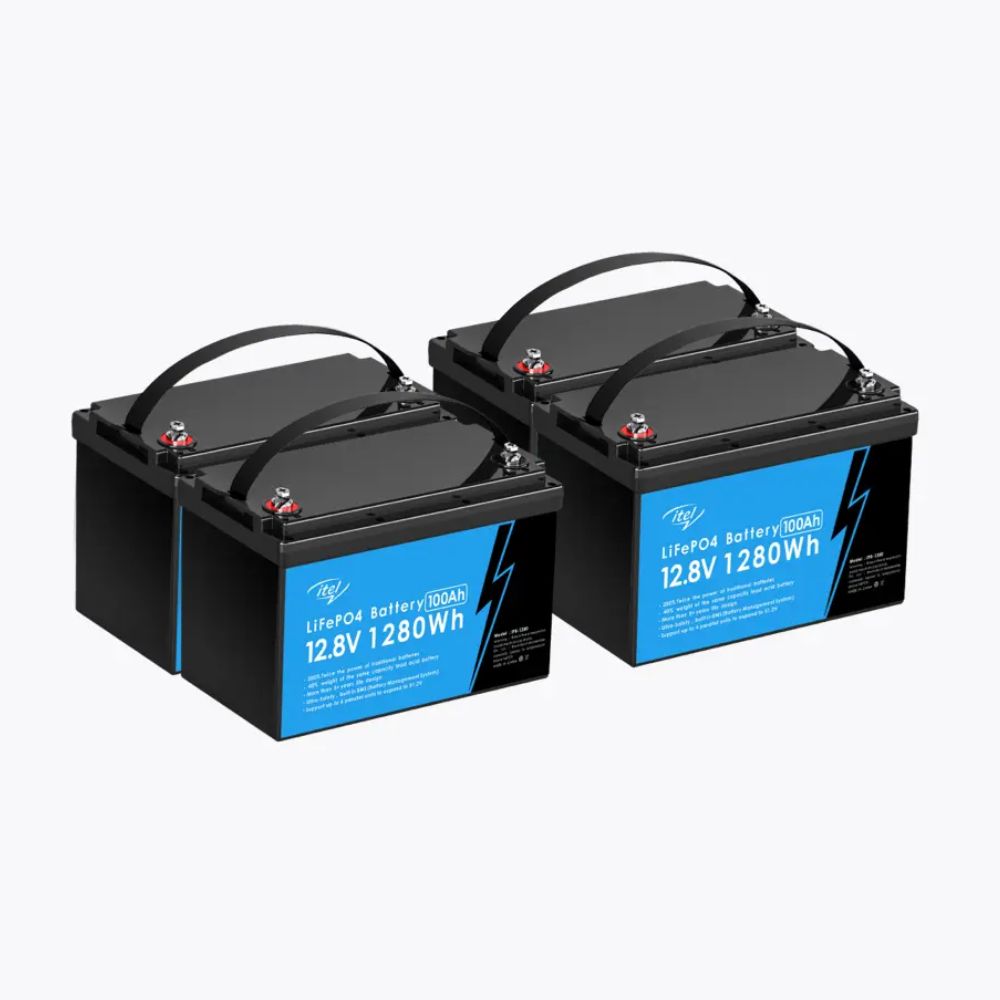

Name: IPB
Brand: itel
SKU: 1565
Availability: InStock

Type	12.8V100Ah	12.8V200Ah	25.6V100Ah
Battery Type	LiFePO4	LiFePO4	LiFePO4
Nominal Voltage	12.8V	12.8V	25.6V
Nominal Capacity	100Ah	200Ah	100Ah
Operating Voltage Range	10V-14.6V	–	20V-29.2V
Standard Charging Current	20A	40A	20A
Maximum Continuous Charge Current	100A	200A	100A
Cut-off Charging Voltage	14.6V	–	29.2V
Cut-off Charging Current	1A	2A	1A
Standard Discharge Current	20A	40A	20A
Maximum Continuous Discharge Current	100A	200A	100A
Cut-off Discharge Voltage	10V	–	20V
Dimensions (mm)	328×172×220	532×207×215	532×207×215
Weight (kg)	11.5Kg	–	21.5Kg
Working Temperature (Charge °C)	0°C – 55°C	0°C – 55°C	0°C – 55°C
Working Temperature (Discharge °C)	-20°C – 60°C	-20°C – 60°C	-20°C – 60°C
IP Rating of Enclosure	IP21	IP21	IP21
Humidity	5% – 95%	5% – 95%	5% – 95%
Altitude (m)	<2000	<2000	<2000
Shell Material	PC+ABS	PC+ABS	PC+ABS
Current Limiting Function	100A	200A	100A
Design Life	5+ years	5+ years	5+ years
Cycle Life	≥2000	≥2000	≥2000
Authentication Level	UN 38.3 + MSDS + DGM	UN 38.3 + MSDS + DGM	UN 38.3 + MSDS + DGM

Model	12.8V 100Ah, 12.8V 200Ah, 25.6V 100Ah
